Debugging MSBuild scripts
If you want to debug an MSBuild script from without Visual Studio, you need to use the /debug command line option.
The trick is that this option is not normally available; you need to set a registry key to enable it.
Enable the MSBuild Debugger
Under the HKLMSoftwareMicrosoftMSBuild4.0 key, create a string value called EnableDebugger with a value of “true”.
If you’re on a 64 bit system, you’ll also want to set the same value under the key HKLMSoftwareWow6432NodeMicrosoftMSBuild4.0.
Verify
If you then run msbuild /help, you should now see the documentation on the /debug switch:
/debug
Causes a debugger prompt to appear immediately so that
Visual Studio can be attached for you to debug the MSBuild XML and any tasks and loggers it uses.
Debugging

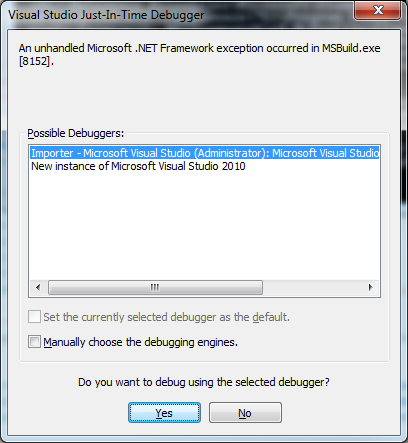

Now you can pass the /debug option to MSBuild when running it. This will immediately break into the debugger, which will usually give you a prompt to select your JIT debugger:
The debug session will then start at the very top of the root MSBuild project file, and you can go from there.
You can set breakpoints in your MSBuild project files from within the IDE, and inspect the MSBuild variables using Locals and Watch.
Some more tips:
- Your breakpoints may not show up to be hit yet until the project file they’re contained in actually loads. If you continue on, the project will get loaded and the breakpoint will get hit.
- To prevent yourself breaking into framework code that you don’t have source for, you can check the Enable Just My Code (Managed only) option under Debug > Options and Settings > Debugging > General.
- From the Immediate window to evaluate conditions using EvaluateCondition:
Immediate input: EvaluateCondition("'$(MyProperty)' == ''")
Immediate output: false
- From the Immediate window you can evaluate expressions using EvaluateExpression (remember to escape slashes):
Immediate input: EvaluateExpression("C:\$(MyFolderName)")
Immediate output: C:MyFolder
Original article and full details (recommended reading) is here: https://blogs.msdn.com/b/visualstudio/archive/2010/07/06/debugging-msbuild-script-with-visual-studio.aspx
